Quick Details

  • Structure: Deep Groove
  • Type: Ball
  • Brand Name: Neutral
  • Bore Size: 3 - 150 mm
  • Outside Diameter: 7 - 280 mm
  • Model Number: 6328
  • Precision Rating: P0 P6 P5 P4 P2
  • Seals Type: OPEN ZZ 2RS RS
  • Number of Row: Single Row
  • Place of Origin: Zhejiang, China (Mainland)
  • Bearing Cage: PTFE PEEK Nylon
  • Service: OEM Customized Services
  • Application: Extremely Harsh Environment
  • Bearing Package: Standard Industrial Packing
  • Certificate: ISO9001:2008
  • Lubrication: Oil-free Self-lubricated
  • Feature: Long life High speed Low noise
  • Vibration: Z1V1 Z2V2 Z3V3 Z4V4
  • Clearance: C2 C0 C3 C4 C5
  • Color: Black/White

Packaging & Delivery

Packaging Details Standard industrial packing or as customers' requests
Delivery Time Shipped in 7 days after payment

Bearing 6328 Ceramic Ball Bearing for Food Overstock

Product Description



Full ceramic bearing introduction:



     Full ceramic bearings have the characteristics of anti-magnetic insulation, abrasion resistant, oil-free self-lubricating and enduring extreme high or low temperature, so they can be used for harsh environment and even under some special condition. The material of rings and rollers is jar gonia(ZrO2) and the holder uses poly back fluoride(PTFE) as standard configuration. Generally, we can use the reinforced nylon made of glass fiber 66(GRPA66-25), special engineering plastics(PEEK, PI), nonrust steel(AISI SUS316 SUS304), brass(Cu) and so on. Ceramic deep groove ball bearings are made entirely of ceramic material and are superior to common Steel Angular Contact Bearings in many ways. Ceramic is the perfect material for any application seeking to achieve higher RPM's, reduce overall weight or for extremely harsh environments where high temperatures and corrosive substances are present.





The advantages of ceramic deep groove ball bearing:

1) The ceramic bearing has the feature of corrosion resistance, the ceramic rolling bearing suitable for                operation under harsh conditions covered corrosion media.

2) Since the ceramic ball rolling has lower density than steel, so which is much lighter, so when you

     rotate the outer ring centrifugal effect can be reduced by 40% , thus greatly extended service life.

3) The expansion and contraction of the ceramic affected smaller than steel, and therefore the gap of

     the bearing is constant, the bearing allows the temperature changes more severe environment.

4) As the ceramic has higher modulus of elasticity than steel, when the force is not easy deformation,

     and therefore help to improve the operating speed and achieve high accuracy.





Applications:

1)  Power Tools

2)  Fans

3)  Washing Machines

4)  Pumps

5)  Electric Motors

6)  Sport Apparaus

7)  Textile Machined

8)  Skateboard Skate





Deep Groove Ball Bearing Specifications



ProductBearing 6328 Ceramic Ball Bearing for Food Overstock
Precision RatingABEC1(P0)   ABEC3(P6)   ABEC5(P5)   ABEC7(P4)   ABEC9(P2)
ClearanceC0, C2, C3, C4, C5
Sealed CapRubber or Metal
OEMAcceptable
Bearing MaterialChrome steel, Gcr15, Stainless steel, Ceramic, Plastic are all available
Seals TypeOpen 2RS ZZ RS
Inner Size Range3-150 mm
Outer Size Range7-280 mm

Regular Export Packing

Card board package, pallet, wooden case or according to the requirements of the customers
MOQ1 pcs
Dlivery Time3-7 days after receiving your payment
Payment TermsL/C, T/T, Western Union, MoneyGram, Paypal
Port of shippmentShanghai / Ningbo Port
Place of OriginZhejiang, China
Product List:





Bearing

No.





Boundary

Dimension(mm)



Basic Load

Rating (N)

Limiting Speeds

(rev/min)

Weight
dDBCrCorGreaseOilkg(refer)
6000102684620196030000360000.019
6001122885070236026000320000.022
6002153295590285022000280000.030
60031735106050325019000240000.039
60042042129360500017000200000.069
600525471211200655015000180000.080
600630551313300830012000150000.120
6007356214159001020010000130000.160
600840681516800116009500120000.190
600945751620800146008500110000.250
601050801621600160008000100000.260
60115590182810021200750090000.390
60126095182960023200670080000.420
601365100183070025000630075000.440
601470110203770031000600070000.600
601575115203970033500560067000.640
601680125224750040000530063000.850
601785130224940043000500060000.890
601890140245850050000480056001.150
601995145246050054000450053001.200
6020100150246050054000430050001.250
6021105160267250065500400048001.600
6022110170288450073000380045001.970
6024120180288800079500360043002.670
602613020033106000101000320038003.920
602814021033110000109000300036004.150
603015022535126000126000280032004.480
603216024038137000135000260030005.890
603417026042161000160000240028007.920
6036180280461740001800002300270010.30
6038190290461880002000002100250010.80

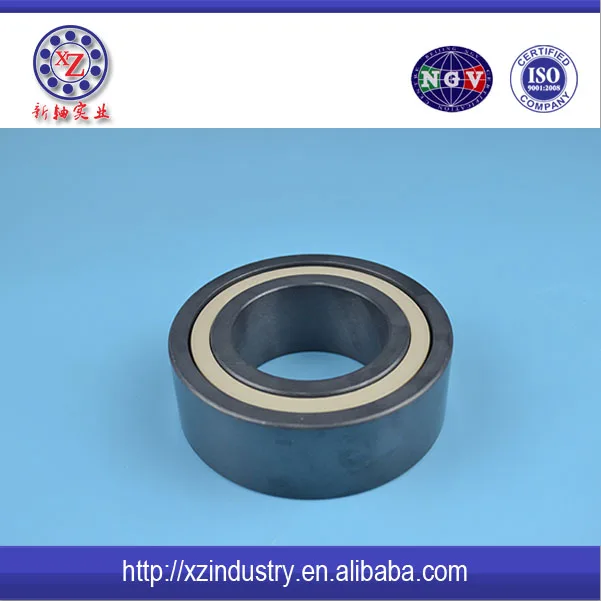

Product Show

Packaging & Shipping
Packaging Detail:Wooden boxes or Cardboard boxes or  according to your requirements
Delivery Detail:In stock or  at shorter time, also we can send them at your request









Our Services

 Our Services

 1)  Full technical support from concept design to final product delivery
 2)  On-time delivery with no compromise on quality
 3)  High-quality product making with advanced equipment and techniques

 4)  Large-scale of proudction availabl

 5)  Lower cost (medium-size factory, 3000 square meters), but high-end quality only(the

       same quality control system as per big factory)

 6)  Any questions to be sent will get response within 24 hours



Why choose Xinzhou?



Company Information

About us:



We are specialized on full ceramic bearing, hybrid ceramic bearing stainless steel,



stainless steel bearing,high temperature and high performance plastic bearings,



ceramic ball, and various special bearings of non-standard.



As conventional models are all stock in hand , welcome to inquiry,



if there is need we can provide with free samples!



Please send us a a quote.













FAQ

 FAQ:



1) How to prolong service life of bearings?



      Accurate installation and using,alignment,timely monitor,re lubrication etc.



2) Reason for bearings failure?



    Usually is incorrect using method,pollution,improper use of lubricant,damage

    happened in installation and handing,also including installation error.

    according to the traces can know the reason why is failure.



3) How to choose bearings?



    Analyse mechanical device and use conditions.clear the requiremment of bearings.

    select type of bearings,select distribution way of bearings.selet dimensions of bearings,

    select installation method of bearings.



4) When select bearings specifications,what you need to consider?



      The precision of the bearings(rotating precision,dimensional tolerances)internal

    clearance and preload bearing material and heat treatment.structure of cage and material.



 5) Payment method,packing way,transport method,time of delivery?



       T/T,PAYPAL,WESTERN UNION,L/C



     Tube,box,carton,pallet,



     By sea or by air,



       3-15 days after receipt of payment.
