High speed precise plastic ceramic deep groove ball bearings 6002 for window or airconditioner

FOB Reference Price:Get Latest Price
$0.15 - $0.50 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Structure:
Deep Groove
Type:
Ball
Brand Name:
Neutral
Bore Size:
3 - 150 mm
Outside Diameter:
7 - 280 mm
Model Number:
6002
Precision Rating:
P0 P6 P5 P4
Seals Type:
OPEN ZZ 2RS RS
Number of Row:
Single Row
Place of Origin:
Zhejiang, China
Bearing Cage:
PTFE PEEK Nylon
Service:
OEM Customized Services
Application:
Machinery
Bearing Package:
Standard Industrial Packing
Certificate:
ISO9001:2008
Lubrication:
Oil-free Self-lubricated
Feature:
Long life High speed Low noise
Vibration:
Z1V1 Z2V2 Z3V3 Z4V4
Clearance:
C2 C0 C3 C4 C5
Color:
White
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard industrial packing or as customers' requests
Port
Shanghai
Product Description

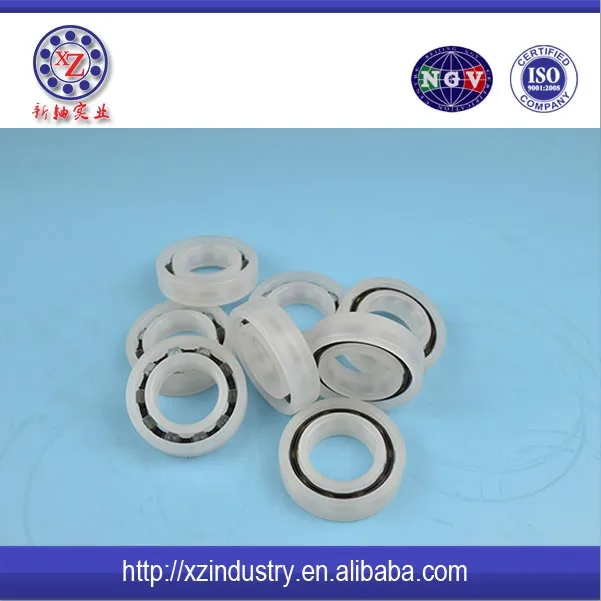

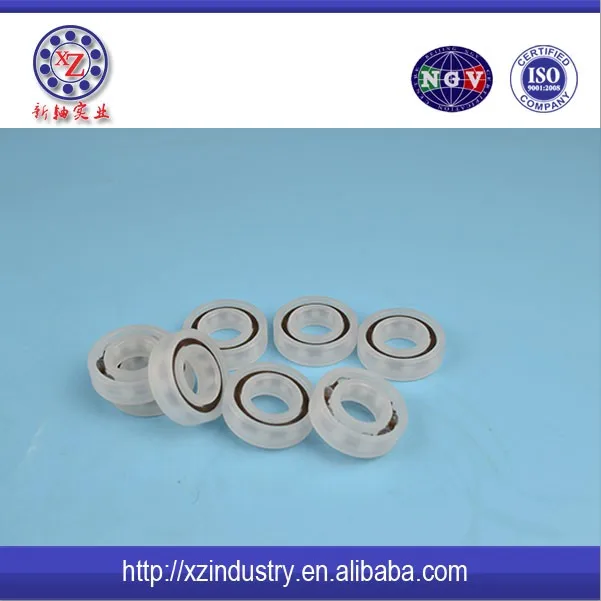

High speed precise plastic ceramic deep groove ball bearings 6002 for window or airconditioner

Plastic bearing introduction:

Plastic Bearing can be highly wear resistance, with a low coefficient of friction and can replace

more expensive alternatives in many applications. Plastic Bearings also do not typically need

lubrication unless steel balls are used in combination with plastic races. Plastic bearings are

designed to maintain a low coefficient of friction over the life of the bearing. Compared to

steel bearings, which can become pitted and increase the coefficient of friction, plastic

bearingsmany times last longer. And finally, Plastic Bearings can be used in wash-down

applications, salt water and harsh chemicals without compromising performance.

Water can even be considered as a lubricant for plastic bearings.

The advantages of plastic ball bearing:

1)   Rigidity, high hardness,even at low temperatures,high impact strength

2)   Good excellent elasticity, creep resistance

3)   High thermal stability and very good dimensional stability

4)   Good sliding properties, wear resistance

5)  Physiologically inert, suitable for contact with food
6)  Even in strong acid and strong oxidizing agents, poor paint adhesion

Applications:

1)  Printing equipment

2)  Mechanical and electrical equipment

3)  Fitness equipment

4)  Food machinery

5)  Furniture and decorating materials

Specifications

ProductHigh speed precise plastic ceramic deep groove ball bearings 6002 for window or airconditioner
Precision RatingABEC1(P0)   ABEC3(P6)   ABEC5(P5)   ABEC7(P4)
ClearanceC2, C0, C3, C4, C5
Sealed CapRubber
OEMAcceptable
Bearing MaterialCeramic, Plastic are all available
Seals TypeOpen 2RS ZZ RS
Inner Size Range3-150 mm
Outer Size Range7-280 mm

Regular Export Packing

Card board package, pallet, wooden case or according to the requirements of the customers
MOQ1 pcs
Dlivery Time3-7 days after receiving your payment
Payment TermsL/C, T/T, Western Union, MoneyGram, Paypal
Port of shippmentShanghai / Ningbo Port
Place of OriginZhejiang, China
Product List:





Bearing

No.





Boundary

Dimension(mm)



Basic Load

Rating (N)

Limiting Speeds

(rev/min)

Weight
dDBCrCorGreaseOilkg(refer)
6000102684620196030000360000.019
6001122885070236026000320000.022
6002153295590285022000280000.030
60031735106050325019000240000.039
60042042129360500017000200000.069
600525471211200655015000180000.080
600630551313300830012000150000.120
6007356214159001020010000130000.160
600840681516800116009500120000.190
600945751620800146008500110000.250
601050801621600160008000100000.260
60115590182810021200750090000.390
60126095182960023200670080000.420
601365100183070025000630075000.440
601470110203770031000600070000.600
601575115203970033500560067000.640
601680125224750040000530063000.850
601785130224940043000500060000.890
601890140245850050000480056001.150
601995145246050054000450053001.200
6020100150246050054000430050001.250
6021105160267250065500400048001.600
6022110170288450073000380045001.970
6024120180288800079500360043002.670
602613020033106000101000320038003.920
602814021033110000109000300036004.150
603015022535126000126000280032004.480
603216024038137000135000260030005.890
603417026042161000160000240028007.920
6036180280461740001800002300270010.30
6038190290461880002000002100250010.80
