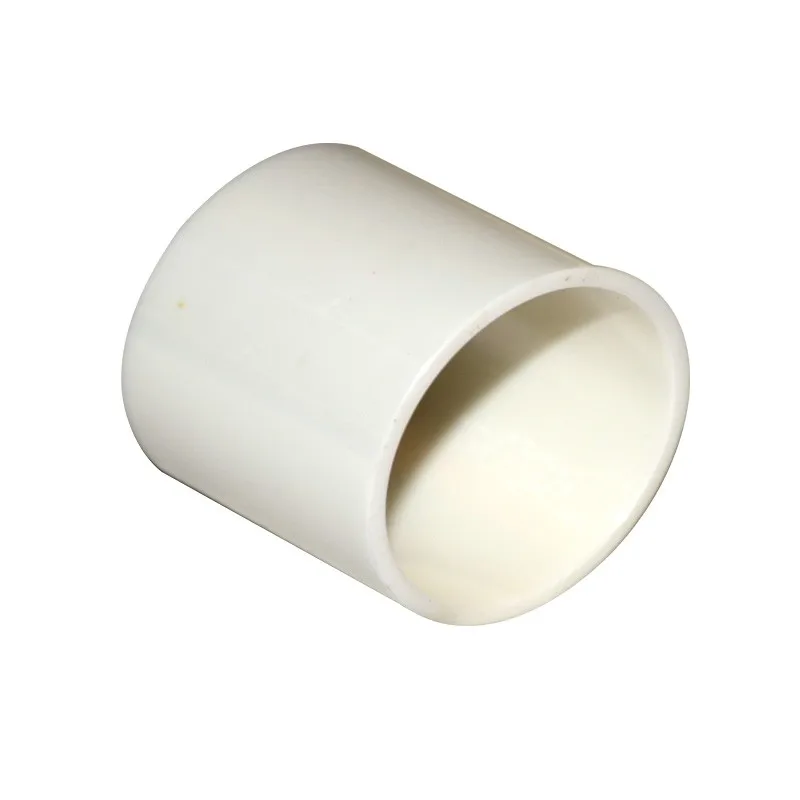

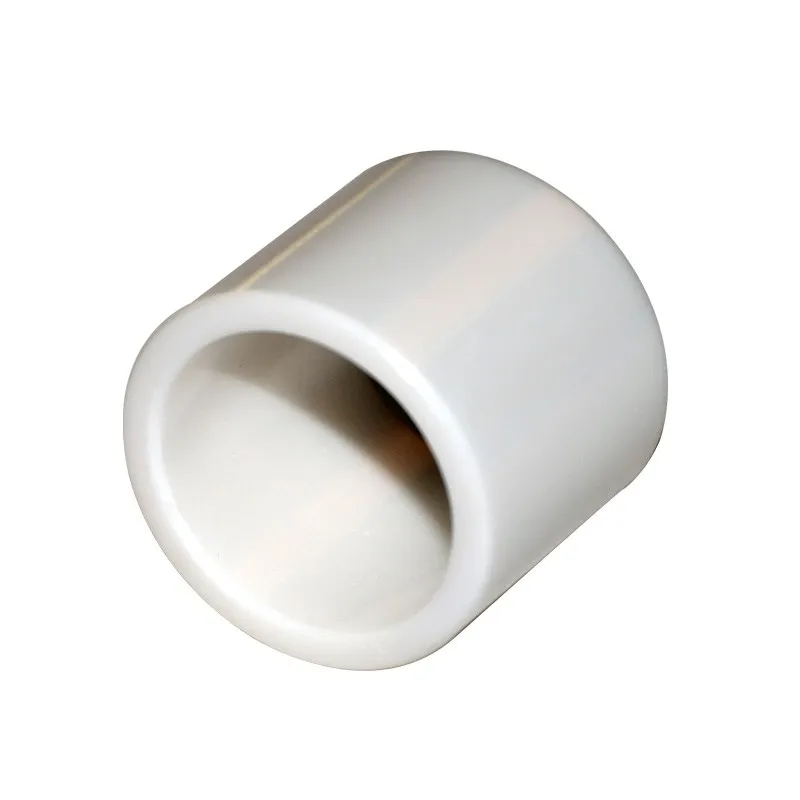

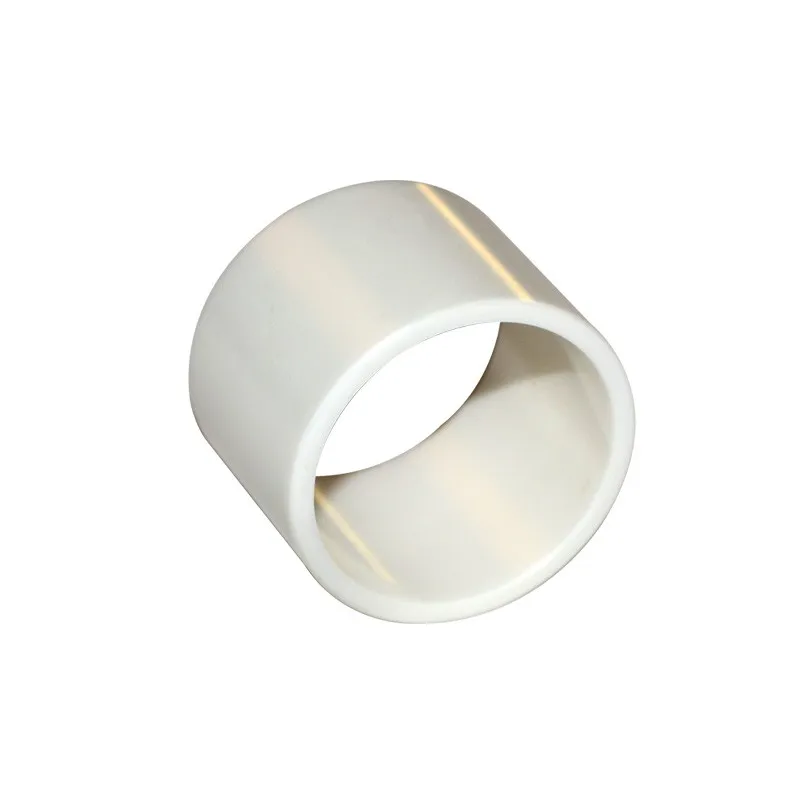

Low friction Zirconia ceramic custom design sleeve bearing bushing 10x15x10 mm

FOB Reference Price:Get Latest Price
  • 10 - 99 Pieces
    $25.00
  • 100 - 999 Pieces
    $23.00
  • >=1000 Pieces
    $21.00
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Samples - $25.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Place of Origin:
Shanghai, China
Brand Name:
XZBRG
Model Number:
10x15x10 mm
Type:
Sleeve
Material:
ZrO2 ceramic, Full Ceramic Zirconia
Name:
Bearing bushing
Performance:
Low friction
Lubrication:
Dry,self-lubricated
Color:
White
Application:
Food industry/Oil industry
Precision Rating:
ABEC-1(P0)
Bush types:
Flange
Features:
Low Resistance
Service:
OEM Customized Services
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard package with enough bubble film or by customer's request.
Port
Shanghai, Ningbo,Dalian
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated
Product Description

Product Overview

Ceramic sleeve bearing are usually customized due to its' sizes are different and the tolerances are different.

The Advantages

The advantages of our ceramic bearings are vast including lighter weight, lower friction and heat, greater speeds and much greater durability.

Product Name
Low friction Zirconia ceramic custom design sleeve bearing bushing
Material
Both inner and outer races are made of ZrO2 ceramic
Color
White
Grease
Dry,Self-lubricated
Dimension
10x15x10 mm
Magnetism
None
Hightest Temp.
550℃
Used
Alkali and Acid and other hostile environment and special application
Products Show

The application of our product:

Ceramic shaft,sleeve for different pump.
Ceramic plunger for high pressure cleaner.
Wearlessness,resistant acid-base and high intensity ceramic assembly apply to petroleum,chemical industry.
Wearlesness,corrosion resistance,thermos table parts apply to precision machine.

Related Products
Our Company

Showcase

Stainless steel series

Showcase

Si3N4 series

Equipment

Ceramic balls

Equipment

Ceramic bearings

Our Advantages

Higher temperature

Ceramic maintains mechanical properties at high temperature, so full ceramic bearing can be used at elevated temperature

Corrosion resistant

Full ceramic bearing are more suitable for chemical industry application

Temperature-variation

Because thermal expansion co-efficiency of ceramic are smaller than metal, so the change of clearance of full ceramic bearing is smaller than that of metal bearing

Work under poor lubrication

Because ceramics are self-lubrication. Full ceramic bearing could be used at high-vacuum environment

Prevent electrical arcing

Because ceramics is not electrical conductor

Magnetic environment

Because ceramics do not respond to magnetic forces
